Output slot

Data can be output by declaring an output slot such as OutpotSlotInt.

Example script

Create a TestOutputSlotBehaviour script file and write the following code.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13

using UnityEngine;
using Arbor;

[AddComponentMenu("")]
public class TestOutputSlotBehaviour : StateBehaviour
{
	public OutputSlotInt outputSlot;

	public override void OnStateBegin()
	{
		outputSlot.SetValue(Random.Range(100, 200));
	}
}

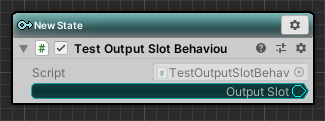

When this script is added to the state of ArborFSM, it becomes as follows.

Output slot class
