To customize a calculator node, you need to create a script file for the calculator node and describe the process you want to do.

Create a Calculator script file

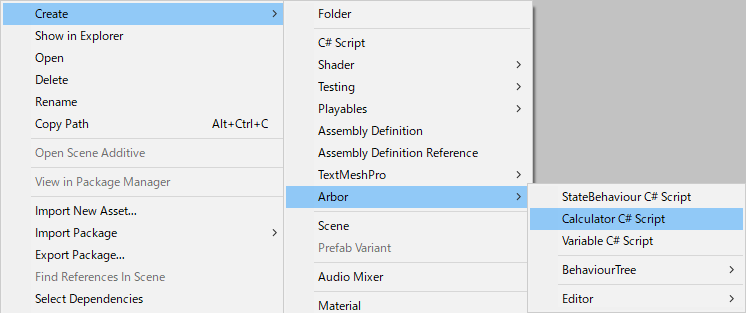

  • Right-click on the location you want to create from the Project window.
  • From the right-click menu, and select “Create> Arbor > Calculator C# Script”.
  • Determined to enter the file name

Function to be called

By assigning the created Calculator to a calculator node in ArborEditor, each function of the script will be called.

  • OnCalculate
    It is called when calculation is required.
    Describe the operation process here and output the data with OutputSlot.SetValue.
  • OnCheckDirty
    It is called to determine if recalculation is necessary. Please override as necessary.
    Please return whether necessary data for calculation has been changed and recalculation is necessary.
    It is not necessary to be conscious of recalculation depending on the connection state of the input slot because it is judged internally by Arbor.
    (It should be true to handle external object values, such as Transform.position)
  • MonoBehaviour message functions
    For details, please see the MonoBehaviour Messages of Unity ScriptReference.

Flow of calculation

  • Call InputSlot.GetValue () as necessary. (via the value property if it is a FlexibleField).
  • OnCheckDirty is called to determine if recalculation is necessary.
    (If the value was changed beforehand by OutputSlot.SetValue, recalculation will be performed regardless of the result of OnCheckDirty)
  • On recalculation is required OnCalculate is called.
    • Call InputSlot.GetValue () as necessary in OnCaluculate.
    • Below, we will trace InputSlot to get the value until recalculation is no longer needed.

Fields and Arbor Editor

Basically, as with StateBehaviours Fields and Arbor Editor, declaring fields makes it displayable in Arbor Editor and editable.

Data flow

It is important to input and output values by data flow in order to utilize compute nodes.

For details, see Scripting : Data flow.

Additional explanation

  • The file name and class name must be the same.
  • If the file is placed under a special folder such as Editor folder, it will not be recognized.
  • The AddComponentMenu("") that is automatically given is to prevent it from being displayed in Inspector's Add Component.
  • We do not support the behavior of adding directly to GameObjects without going through the graph.
  • The C# script needs to be compiled to reflect the changes.
    If you have turned off Auto Refresh in Preferences, for example, you will need to manually do “Assets > Refresh” from the menu.
