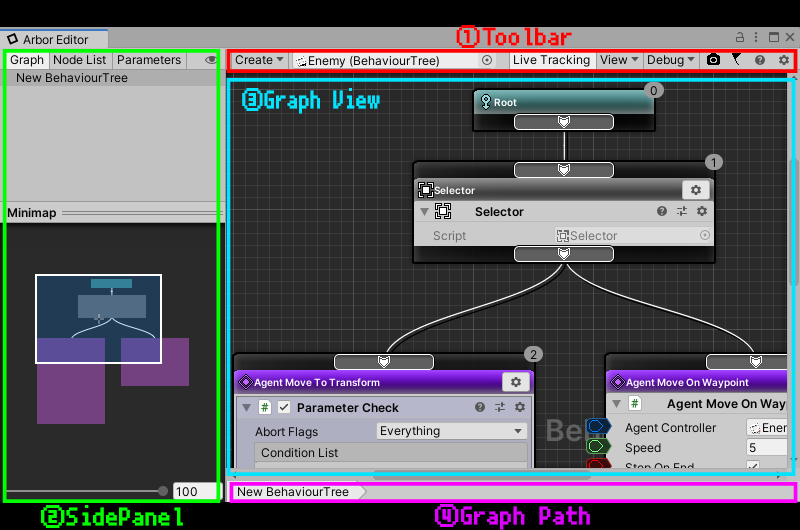

UI description

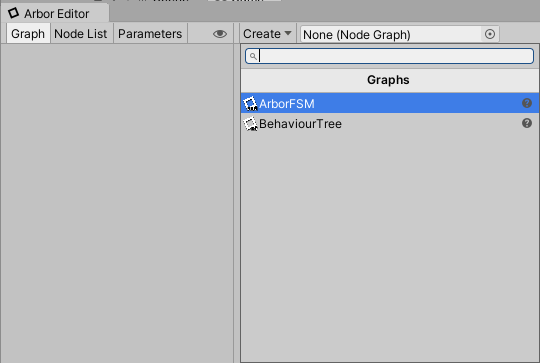

“Create” drop down

Create a GameObject with the selected graph in the scene.

Menu Contents
ArborFSM Create a GameObject with ArborFSM in the scene
BehaviourTree Create a GameObject with BehaviourTree in the scene

Graph selection field

This is a field for selecting a graph.

“Live Tracking” toggle

Toggle active node tracking during play.

“View” drop down

Show menu related to View.

Menu Contents
Expand All Expand all collapsed behavior
Collapse All Collapse all deployed behaviors
Node Comment
Show according to the setting of each node.
Show All
Show all node comments.
Show Commented Only
Show only node comments that have been written.
Hide All
Hide all node comments.
Show Outside Node
Display data slots outside the frame of a node.
Show Inside Node
Display data slots in the frame of the node.
Show Flexibly
Display the data slot outside the frame of the node only when connecting without displaying it.

Refer to the manual of each graph for menu items by graph.

“Debug” drop down

Displays the debug related menu of the graph.

Menu Contents
Show all data values always Always display data values regardless of display setting of individual data lines
Show all data values Change to show the output values of all data lines to during play
Hide all data values Change to hide the output values of all data lines

Refer to the manual of each graph for menu items by graph.

Capture button

Save the entire graph view in the image.
(Maximum size is up to 16384 x 16384)

Notification button

This button will be displayed when a new version is released.

Help button

A menu for opening a manual etc. is displayed.

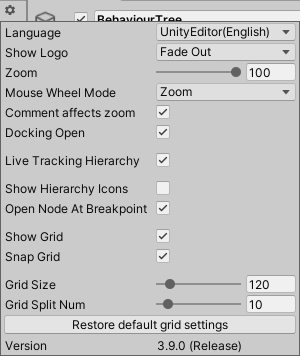

Setting button

Open the window for setting.

Item Contents
Language Select language to display
Set language according to OS settings
Set the language according to the Unity Editor settings
Each language
Set for each language
Show Logo Switching the Arbor logo displayed in the graph view
Hide logo
Fade Out
Fade out after displaying the logo
Always Show
Always show logo
Zoom Setting amount to zoom out
Mouse Wheel Mode Selection of mouse wheel behavior to zoom or scroll
Change the zoom of the graph
Scroll the graph
Comment affects zoom Set whether node comment is affected by zoom
Docking Open Toggle docking when opening ArborEditor window
Live Tracking Hierarchy Switching tracking of graph hierarchy during live tracking
Show Hierarchy Icons Switch whether to display the icon when the GameObject has Arbor related components
Open Node At Breakpoint Toggle whether to open the location of the stopped node when the node stops at a breakpoint
Show Grid Toggle grid display in graph view
Snap Grid Toggle to snap when dragging in graph view
Grid Size Setting the grid width displayed in the graph view
Grid Splin Num Setting the number of split grid sizes
Restore default grid settings Revert the grid setting to default
Version The version of Arbor you are importing

2.Side Panel

Toggle button on side panel

Switch the display of the side panel.

Graph tab

This tab displays the hierarchical tree of the graph.

See Graph Hierarchy for graph hierarchies.

The selected graph is displayed in the graph view.

Rename the graph

There are the following methods to rename.

  • Right-click on the graph you want to rename and select “Rename”.
  • Click the selected graph again.
  • (Mac) Select the graph and press Enter.
  • (Windows) Select the graph and press F2.

Editing an external graph

If you are using an external graph reference behavior such as SubStateMachineReference, enter the external graph edit mode to edit the graph. is needed.

  • Click the > button to the right of the name of the external graph.
  • After editing, click the < button in the header part of the graph tab.

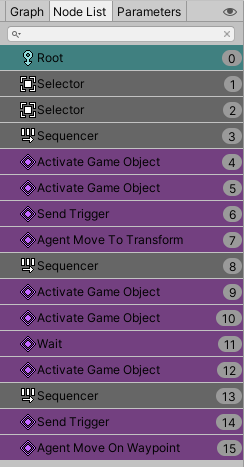

Node List tab

A list of nodes that are placed in the graph.

(Only displayed nodes are nodes involved in graph state)

Method of operation

Operation Windows Mac
Select Left mouse button Mouse button
Additional selection / Deselect Ctrl + Mouse left button command ⌘ + Mouse button
Sequential node selection Shift + Mouse left button shift ⇧ + Mouse button

Parameters Tab

This is a tab about the parameters in the graph.

Create a ParameterContainer

Create a ParameterContainer directly attached to the graph.

  • Open the Parameters tab and click the “Create” button.

Remove a ParameterContainer

Remove a ParameterContainer directly attached to the graph.

  • Open the Parameters tab and click the gear icon on the toolbar.
  • Select “Remove Component” from the menu.

Edit parameters

You can edit parameters like ParameterContainer.

For details, refer to ParameterContainer.

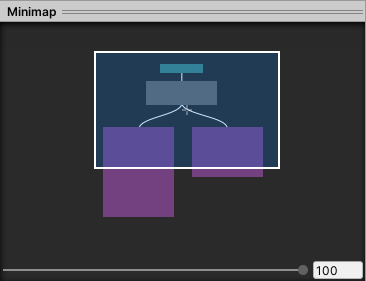

Displays the entire image of the graph currently displayed.

By dragging the rectangle of the display area, you can scroll the display area of the graph view in conjunction with it.

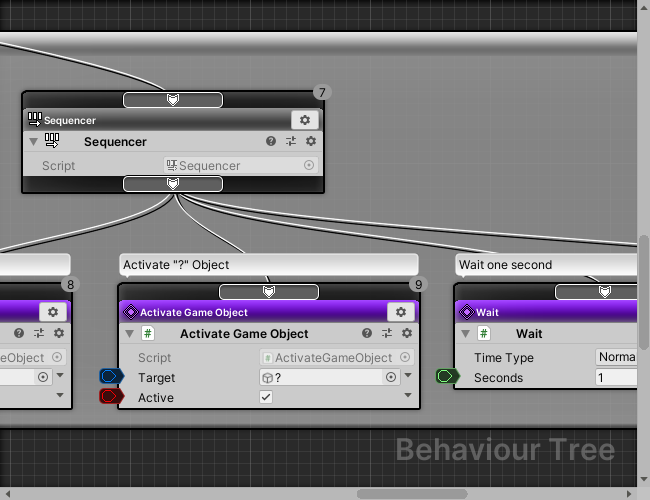

3.Graph View

Display node graph.

4.Graph Path

This is the path to the graph currently displayed in the graph view.
