Common usage of graph
Operation | Windows | Mac |
---|---|---|
Scroll | Mouse middle button drag | Mouse middle button drag |
Alt + Mouse left button drag | option ⌥ + Mouse button drag | |
Operation with scroll bar | Operation with scroll bar | |
Wheel scroll (Switch by setting) |
Wheel scroll (Switch by setting) |
|
Horizontal scroll | Shift + Wheel scroll | shift ⇧ + Wheel scroll |
Zoom out | Wheel scroll (Switch by setting) |
Wheel scroll (Switch by setting) |
Alt + Mouse right button drag | option ⌥ + control ⌃ + Mouse button drag | |
Wheel scroll behavior reversal | Ctrl + Wheel scroll | command ⌘ + Wheel scroll |
Rectangle selection of nodes | Mouse left button drag | Mouse button drag |
Additional mode |
Shift + Mouse left button drag | shift ⇧ + Mouse button drag |
Exclusion mode |
Ctrl + Mouse left button drag | command ⌘ + Mouse button drag |
Move node | Mouse left button drag on node | Mouse button drag on node |
Resize note | Mouse left button drag edge of node | Mouse button drag edge of node |
Context menu | Mouse right button click | control ⌃ + Mouse button click |
For details on how to create nodes etc. please refer to the manual of each graph.
Operation | Windows | Mac |
---|---|---|
Copy node | Ctrl + C key | command ⌘ + C key |
Cut node | Ctrl + X key | command ⌘ + X key |
Paste node | Ctrl + V key | command ⌘ + V key |
Duplicate node | Ctrl + D key | command ⌘ + D key |
Delete node | Delete key | Delete key |
Scroll to position of selected node | F key | F key |
Select all nodes | Ctrl + A key | command ⌘ + A key |
- Double click on the header part at the top of the inside of the node frame, select “Rename” from right click or setting icon.
Enter in the displayed text box.
- Click to select nodes.
- Right-click on an empty area and select “Delete”, or press the Delete key.

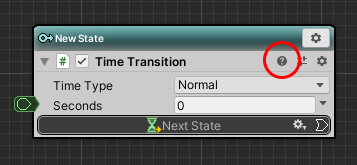

For built-in scripts and scripts with BehaviorHelp attribute, the help icon to open the manual is displayed.
- Click the help icon next to the title bar of various behaviors
