About each menu

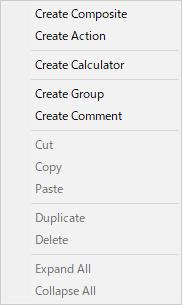

Graph menu

Right-click the graph to display the menu.

Item Contents
Create Composite Create a composite node.
Create Action Create a action node.
Create Calculator Create a Calculator node.
Create Group Create a group.
Create Comment Create a comment.
Cut Cut the selected nodes.
Copy Copy the selected nodes.
Paste Paste the copied nodes.
Duplicate Duplicate the selected nodes.
Delete Delete the selected nodes.
Expand All Expand all the selected node's behaviour.
Collapse All Collapse all the selected node's behaviour.

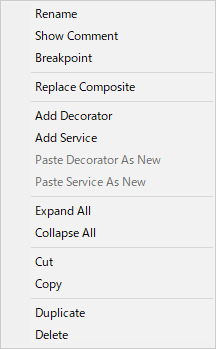

Composite node menu

Right-click the header part of the node or click the gear icon to display the menu.

Item Contents
Rename Change the name of the node.

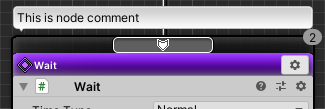

Show Comment Switch the display of the node comment field.

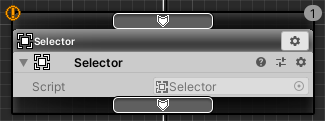

Breakpoint Toggle breakpoint setting.
Replace Composite Replace it with another composite script.
Add Decorator Add a decorator.
Add Service Add a service.
Paste Decorator As New Paste the copied decorator.
Paste Service As New Paste the copied service.
Expand All Expand all the behaviour of the node.
Collapse All Collapse all the behaviour of the node.
Cut Cut the node.
Copy Copy the node.
Duplicate Duplicate the node.
Delete Delete the node.

Composite menu

Right-click the title bar or click the gear icon to display the menu.

Item Contents
Copy Copy the composite.
Paste Values Overwrite it with the value of the copied composite.
(Only valid for the same type)
Edit Script Open the script editor.
Highlight Script Highlight the location of the script file.
Edit Editor Script Open the Editor script (only when there is an Editor script).
Highlight Editor Script Highlight the location of the Editor script file (only if you have an Editor script).

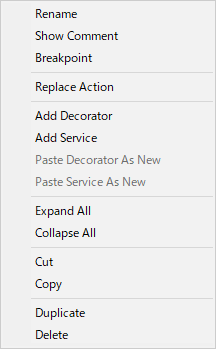

Action node menu

Right-click the header part of the node or click the gear icon to display the menu.

Item Contents
Rename Change the name of the node.
Show Comment Switch the display of the node comment field.

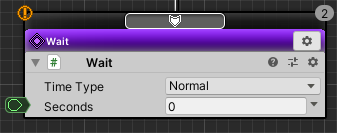

Breakpoint Toggle breakpoint setting.
Replace Action Replace it with another action script.
Add Decorator Add a decorator.
Add Service Add a service.
Paste Decorator As New Paste the copied decorator.
Paste Service As New Paste the copied service.
Expand All Expand all the behaviour of the node.
Collapse All Collapse all the behaviour of the node.
Cut Cut the node.
Copy Copy the node.
Duplicate Duplicate the node.
Delete Delete the node.

Action menu

Right-click the title bar or click the gear icon to display the menu.

Item Contents
Copy Copy the action.
Paste Values Overwrite it with the value of the copied action.
(Only valid for the same type)
Edit Script Open the script editor.
Highlight Script Highlight the location of the script file.
Edit Editor Script Open the Editor script (only when there is an Editor script).
Highlight Editor Script Highlight the location of the Editor script file (only if you have an Editor script).

Decorator menu

Right-click the title bar or click the gear icon to display the menu.

Item Contents
Move Up Move the order up.
Move Down Move the order down.
Copy Copy the Decorator.
Paste Values Overwrite it with the value of the copied decorator
(Only valid for the same type)
Delete Delete the Decorator.
Edit Script Open the script editor.
Highlight Script Highlight the location of the script file.
Edit Editor Script Open the Editor script (only when there is an Editor script).
Highlight Editor Script Highlight the location of the Editor script file (only if you have an Editor script).

Service menu

Right-click the title bar or click the gear icon to display the menu.

Item Contents
Move Up Move the order up.
Move Down Move the order down.
Copy Copy the Service.
Paste Values Overwrite it with the value of the copied service
(Only valid for the same type)
Delete Delete the Service.
Edit Script Open the script editor.
Highlight Script Highlight the location of the script file.
Edit Editor Script Open the Editor script (only when there is an Editor script).
Highlight Editor Script Highlight the location of the Editor script file (only if you have an Editor script).

Connection line menu

Right-click on the connection line to display the menu.

Item Contents
Go to Parent Node Scroll to the position of the parent node.
Go to Child Node Scroll to the position of the child node.
Disconnect Disconnect it.

View menu

Click on the “View” button on the toolbar to display it.

Item Contens
Expand All Expand all collapsed behavior
Collapse All Collapse all deployed behaviors
Node Comment
Normal
Show according to the setting of each node.
Show All
Show all node comments.
Show Commented Only
Show only node comments that have been written.
Hide All
Hide all node comments.
DataSlot
Show Outside Node
Display data slots outside the frame of a node.
Show Inside Node
Display data slots in the frame of the node.
Show Flexibly
Display the data slot outside the frame of the node only when connecting without displaying it.

Debug menu

Click on the “Debug” button on the toolbar to display it.

Item Contents
Show all data values always Always display data values regardless of display setting of individual data lines
Show all data values Change to show the current value of all of the data line.
Hide all data values Change to hide the current value of all of the data line.
Set Breakpoints Sets the breakpoint of the selected states.
Release Breakpoints Releases the breakpoint in the selected states.
Release all Breakpoints Release breakpoints of all states.
