SubStateMachine

Play a child hierarchy ArborFSM.

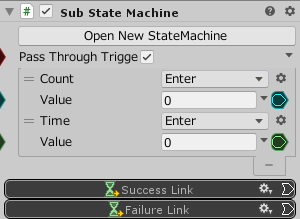

SubStateMachine

Properties

Property Name Description
Open Button Open Arbor FSM of child hierarchy
Pass Through Trigger Flag to pass trigger to child FSM
Argument List Arguments of the graph(Only when there are parameters)
  • From the + button, select the parameter to create.
  • Select the parameter and delete it by clicking the - button.
Success Link Transition on success
Transition Method : OnFinishNodeGraph
Failure Link Transition on failure
Transition Method : OnFinishNodeGraph
