AgentWander

Wander the Agent

AgentWander

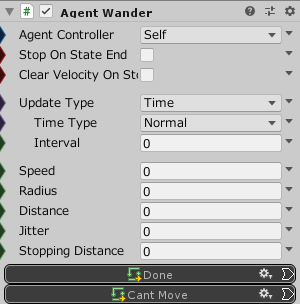

Properties

Property Name Description
Agent Controller AgentController you want to control.
Stop On State End Whether to stop when leaving the state.
Clear Velocity On Stop Whether to clear velocity when stopping
Update Type Agent update type.
Time
Update by time designation.
Done
Update when done。
Start Only
Update only at start
Always
Always updated
Time Type Interval time type.
Normal
Use time of current frame considering timeScale.
Unscaled
Use time of current frame without considering timeScale.
Realtime
Use realtime.
Fixed Time
Use the latest FixedUpdate start time considering the timeScale.
Fixed Unscaled Time
Use the latest FixedUpdate start time without considering timeScale.
Interval Interval (seconds) before moving destination is changed. (Used only when UpdateType is Time, Done)
The interval after arrival for AgentUpdateType.Done.
Speed Speed to move
Radius The wandering radius.
Distance The wandering distance.
Jitter The maximum value of random displacement that determines the destination.
Stopping Distance Distance to stop
Done State transition at the time of movement completion
Transition Method : OnStateUpdate
Cant Move State transition when the destination cannot be found and cannot be moved.
Transition method: OnStateUpdate

Remarks

The destination of the wandering is the point on the Radius circle centered on the agent's forward distance
Where on the circle is randomly displaced by Jitter.
